Standard compactor – With hydraulic or manual door

The horizontal ram roll on/off compactor is available in two versions:
with tilt opening hatch using connection to the hydraulic system of the transport tractor or roll-off equipment.
The hatch opening angle of 130° prevents it from rubbing against the waste on the ground and allows the equipment to tilt completely to conveniently extract the material from the box;

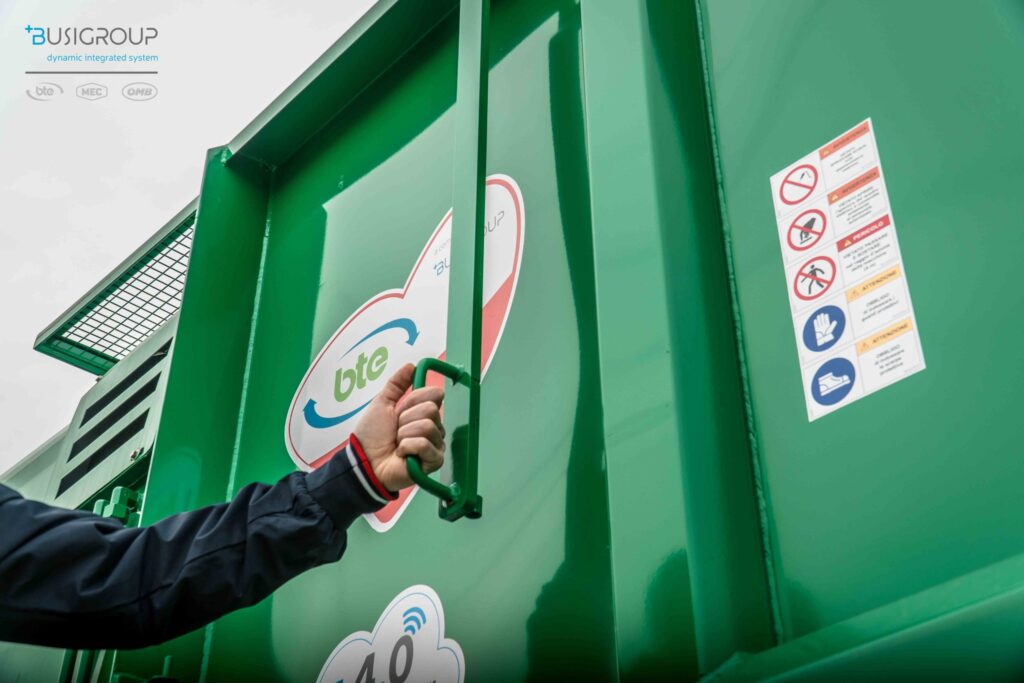

with manual opening door, single casement hatch. The hatch rotates by 270° on three hinges.
Closure is assured by three pawls placed on the opposite side of the hinge controlled by a manual ratchet system.

For both hatches, tightness is assured by a gasket on the two side jambs on the entire height and on the lower casement.

MAIN OPTIONALS AVAILABLE
• automatic start with diffuse sensors
• hydraulic opening loading mouth cover
• airtight
• thrust 50 tons
• ejector system
• light and sound signal when 75% full

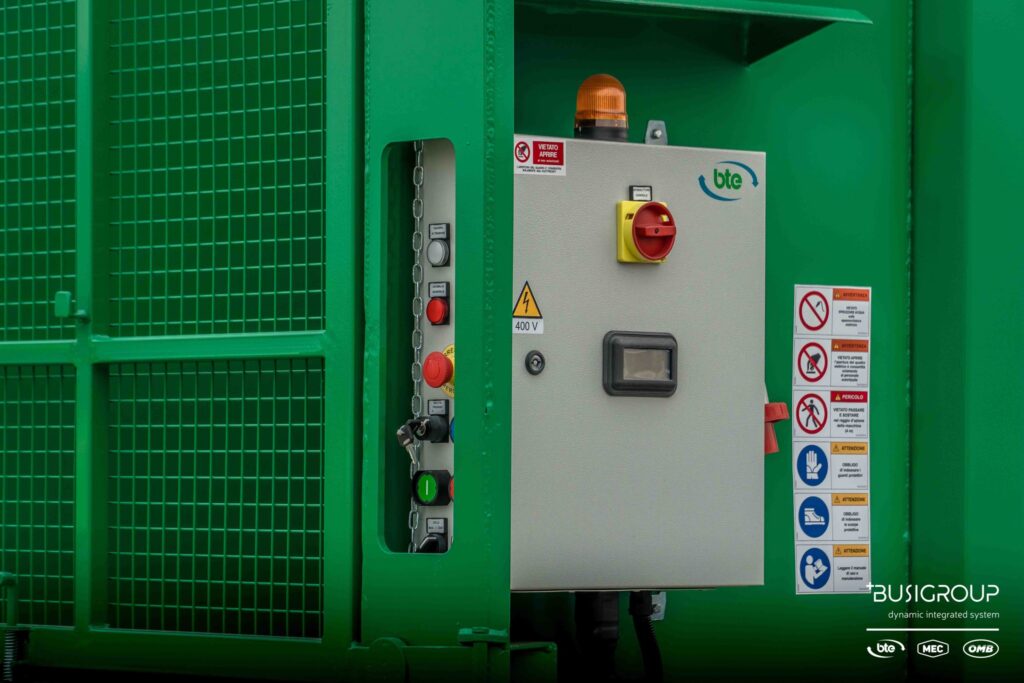

• remote control auxiliary button board
• Diesel operation
• combined Diesel + Electric operation
