Half opening compactor – Bocca di Lupo

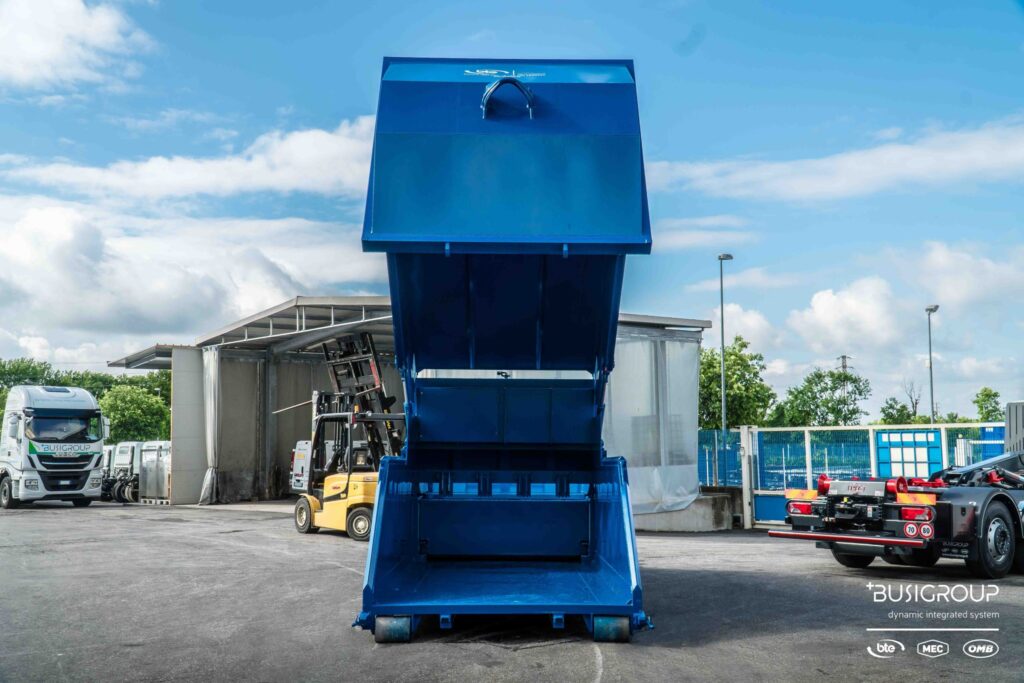

The particular feature of model ACB is that its box structure is split into two parts, hinged to one another in the upper section of the loading hopper. In this way the part that contains the compacted waste opens when unloading, thus making it considerably easier to unload the material.
This makes it the compactor optimal for hard to extract materials after pressing.

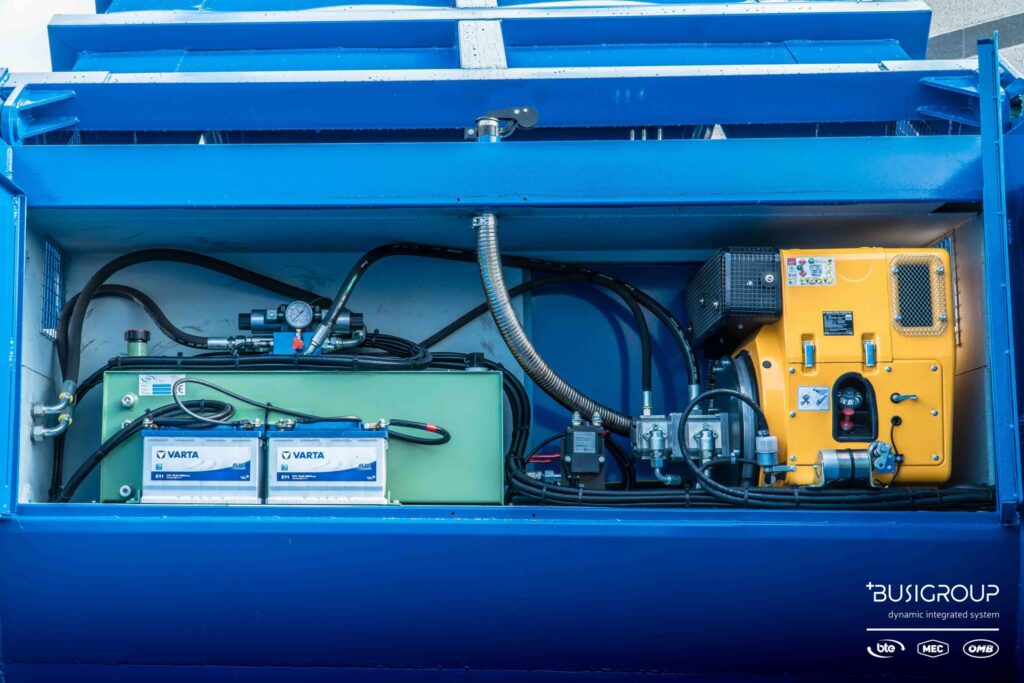

Compared to the standard horizontal ram, the hydraulic system is more powerful and the blade cylinders are oversized to achieve a thrust of 50 Tonnes.

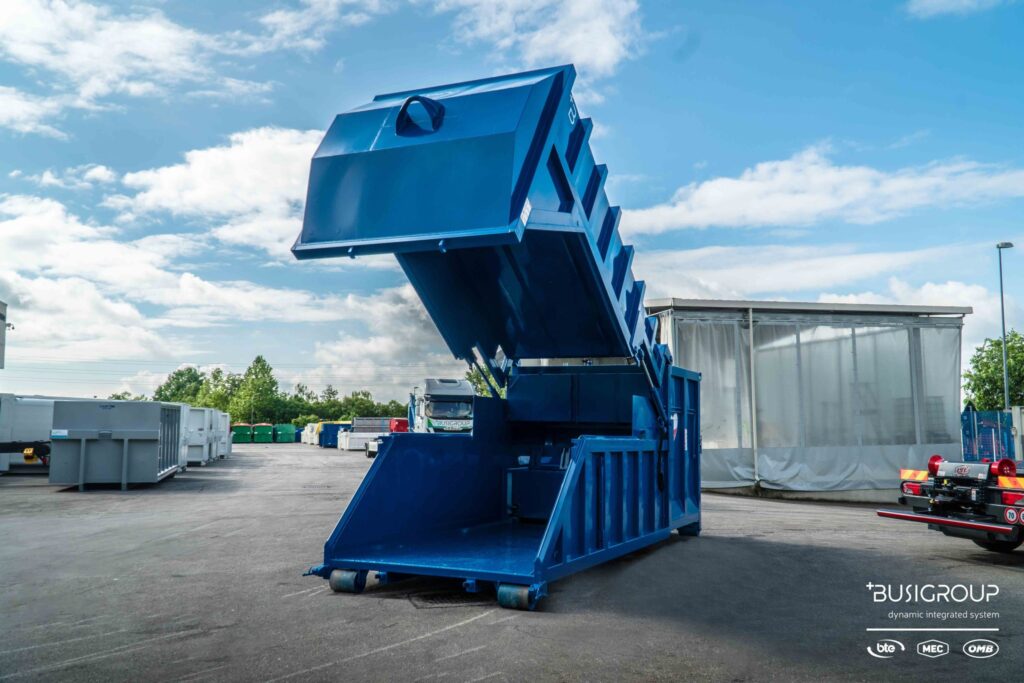

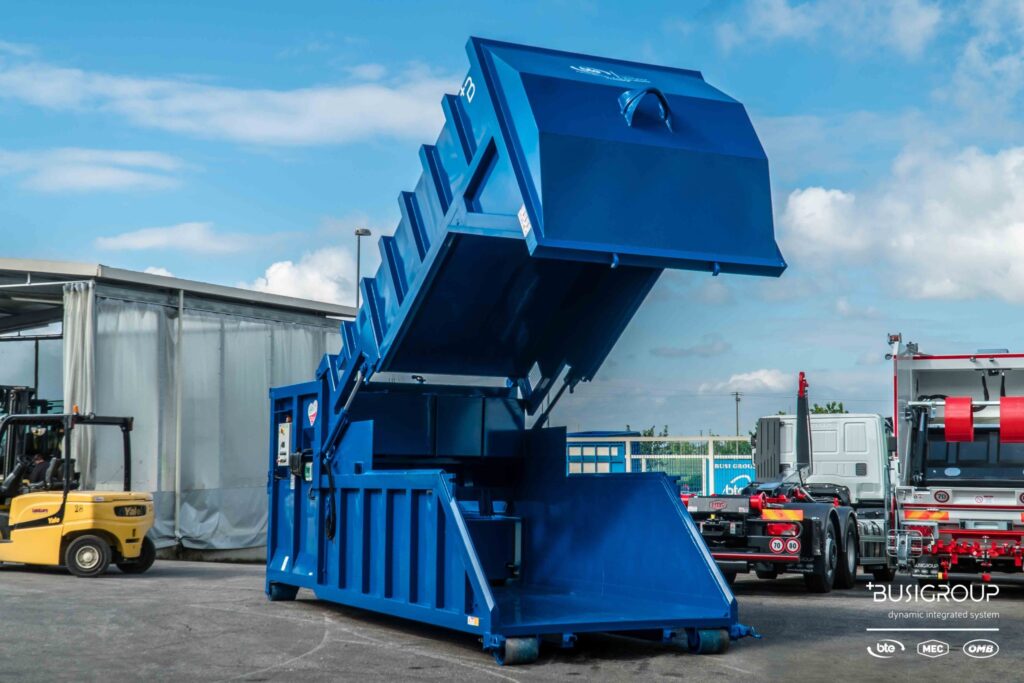

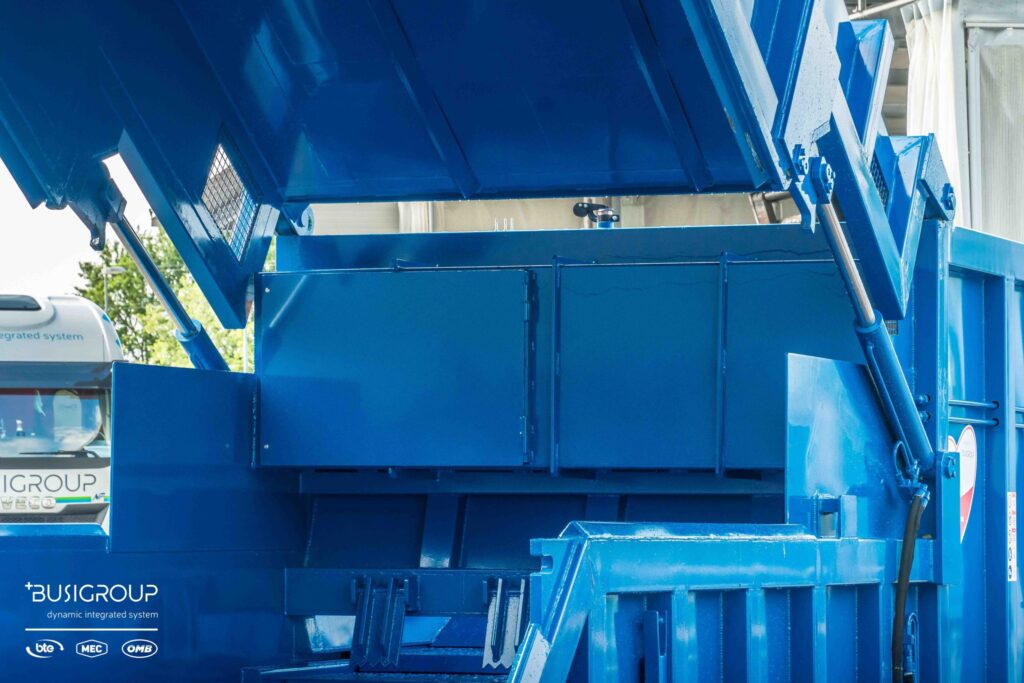

It opens by lifting the top part of the box through two hydraulic cylinders. A locking system with mechanical pawls controlled directly by the opening cylinders ensures the two parts are mechanically tight.

Available in the version with lengthwise partition (1/3 and 2/3) for the entire length and height of the compactor for separate collection of 2 types of material.

MAIN OPTIONALS AVAILABLE
• automatic start with direct diffuse sensors
• thrust 50 tons
• light and sound signal when 75% full
• remote control auxiliary button board
• Diesel operation

Materials treated

Paper and cardboard
Plastic, bottles and flacons
Plastic, film and trim
Dry solid urban waste

Plus

High compaction ratio
Easy to discharge waste
